AABCOOLING NB Cooler 1

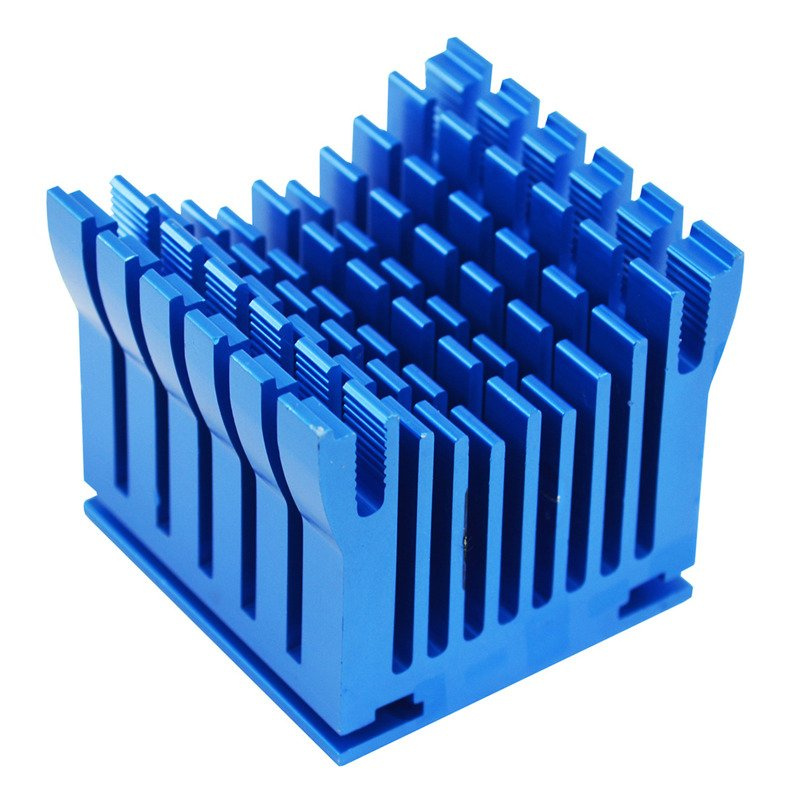

- AAB Cooling NB Cooler 1 is a very efficient and lightweight aluminum radiator (anodised), designed for efficient cooling of chipsets.
AAB Cooling NB Cooler 1 is a very efficient and lightweight aluminum radiator (anodised), designed for efficient cooling of chipsets. The precision design of the aluminum fins and the very large surface of the heatsink base ensures rapid transfer of generated heat from the system both in passive mode and increased performance with the optional AAB Cooling Super Silent Fan 4 or R4 fan. The large heat sink base and the ability to mount pressure plates in different directions and spacing ensure very wide compatibility with a wide range of motherboard circuits.
- Cooling Chipset
- Soundless in Passive Mode
- Large Cooling Base
- ide Compatibility with Various Motherboards
- Fan Mountable, AAB Cooling Fan 4, R4
- Dimensions: 43 x 40 x 46 (L x W x H)
- Power: 6,5V~12 VDC/ 0,02A~0,04A/ 0,13W~0,48W
- Power connector: 3 Pin
- Speed: 4500rpm ±10%
- Flow: 8,26 m3 / h
- Noise: 17,9 dB(A)
Dimensions with optional AAB Cooling Super Silent R4:
- Dimensions: 43 x 40 x 55 (L x W x H)
- Power: 4~12 VDC/ 0,03A~0,09A/ 0,12W~1,1W
- Power Connector: 3 Pin, 4 Pin MOLEX
- Speed: 1900 / 3200 ±10% rpm ±10%
- Flow: 4,25 / 7,35 m3 / h
- Noise: 7,9 / 12,9 dB(A)
Compatible mounting holes:
- With adjustable pressure plates: max. 67 x 40 mm and 70 x 30 mm (any plate adjustment)
- With a compression spring: 65 x 50

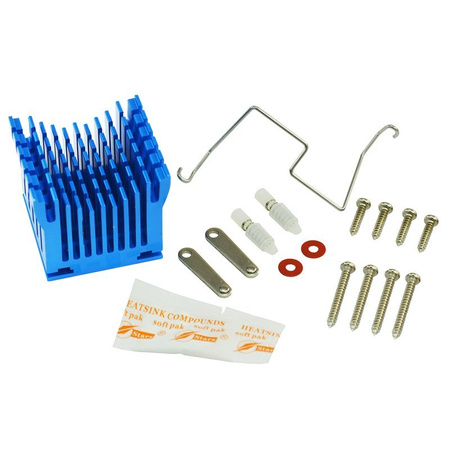

Included:
- 1 x AAB Cooling NB Cooler 1
- 1 x Package
